Utility, Pontoon, Tilt Bed, & Snowmobile Trailers.
SLEDBED & JBLundDock.com: American-Made Hauling
Stock the best way to haul. Offer the superior strength of SLEDBED Aluminum and JBLundDock.com Steel trailers to your clients, ensuring dependable products that maximize your customer satisfaction and profitability.
Built to Perform. Designed for Dealers Profit.
At JBLundDock.com, we manufacture a full lineup of premium American-made trailers built for unmatched durability and performance. We feature the SLEDBED line for lightweight Aluminum Utility hauling and the rugged JBLundDock.com line for Steel Pontoon, versatile Tilt Bed, and dependable Snowmobile Trailers. Every model is engineered for smooth towing and easy loading, ensuring the long-term reliability that minimizes service calls and boosts your dealership’s reputation.
Every Trailer Comes with Life Long LED Lightning!
All trailers feature advanced LED lighting systems with a fully grounded design for brighter, more reliable visibility. Each lighting system is submersible and backed by a lifetime warranty for lasting peace of mind.

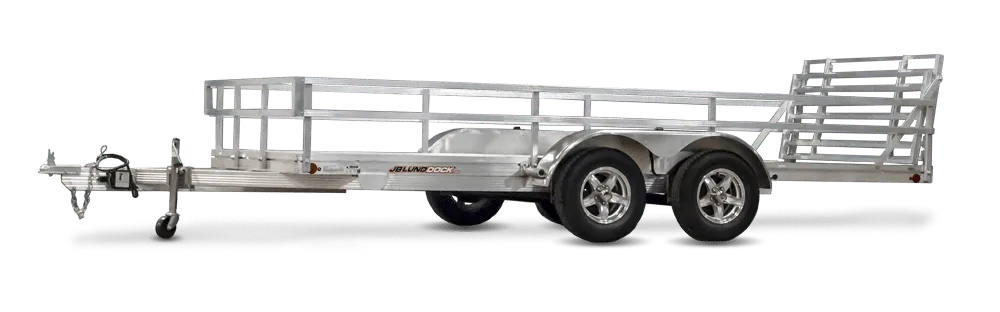

SLEDBED (Aluminum Utility Trailer)
Key Information
- Axle Type Torsion
- 3500 lb Torsion axle with super lube lubricant system-11-year warranty
- Sealed DOT flush mount LED lighting
- Safety chains and 2″ coupler
- Side tube frame for wiring protection
- A-frame tongue
- Extruded Aluminum Decking
- Rust-inhibiting hardware
- 205/75D14 radial tire with aluminum wheel
- Integrated Tie Down
- Jack included
Main Features
Triple Stringers Support
Maximum Durability
This triple-stringer design improves weight distribution, enhances durability, and ensures the trailer can handle heavier loads with greater ease and reliability.
The added support from the triple stringers also helps prevent bending or warping over time, ensuring the trailer maintains its structural integrity for years of use.
Infinite Nut Channel
Easy accessory connection
- Infinite trailer channel to slide a ½” carriage bolt for any of our accessories
- side rack (single or double)
- spare tire carrier
- tiedowns
Optional Features
Utility Trailer Tie Down
- Place anywhere needed using Nut Channel
- Accommodates a 2″ Ratchet Strap
- Aluminum Construction
- Secured with half inch carriage bolt
Bi-fold Ramp
- Reenforced Configuration
- Fold Inside Trailer When Empty
- 72″X 66″ – fits all 12-16 ft trailers
- Unfolds to 66″ vs standard 48″
Spare Tire Carrier Mount
- Aluminum Construction
- Will fit 5 on 4 ½” Rims
- Multi-holes to fit any of our trailers
- Compatible with most trailer brands
- Will bolt to trailer side or trailer tongue
Siderack
Single or double
- Securely fastened to reduce rattle & vibrations
- Fastened to the outside to maintain the inside dims
- Easily removable with carriage bolts
- Lightweight Aluminum Design
Sizes & Technical Specifications
| Model | Size | Axle Config | Tire | Ramp | Jack | Tailer Weight | GVWR |
| 1U78120-1I | 6’ 6 ” X 10′ | 1 – I | ST 205/75 R14 C | S T D | S T D | 480 | 3020 |
| 1U78144-1I | 6’ 6 ” X 12′ | 1 – I | ST 205/75 R14 C | S T D | S T D | 630 | 2740 |
| 1U78144-2I | 6’ 6 ” X 12′ | 2 – I | ST 205/75 R14 C | S T D | S T D | 700 | 2990 |
| 1U78144-1E1I | 6’ 6 ” X 12′ | 1 – E, 1 – I | ST 205/75 R14 C | S T D | S T D | 730 | 2990 |
| 1U78144-2E | 6’ 6 ” X 12′ | 2 – E | ST 205/75 R14 C | S T D | S T D | 760 | 5180 |
| 1U78168-1I | 6’ 6 ” X 14′ | 1 – I | ST 205/75 R14 C | S T D | S T D | 760 | 2740 |
| 1U78168-1E | 6’ 6 ” X 14′ | 1 – E | ST 205/75 R14 C | S T D | S T D | 795 | 2740 |
| 1U78168-2I | 6’ 6 ” X 14′ | 2 – I | ST 205/75 R14 C | S T D | S T D | 760 | 2990 |
| 1U78168-1E1I | 6’ 6 ” X 14’ | 1 – E, 1 – I | ST 205/75 R14 C | S T D | S T D | 790 | 2990 |
| 1U78168-2E | 6’ 6 ” X 14’ | 2 – E | ST 205/75 R14 C | S T D | S T D | 810 | 5180 |
| 1U78192-1E1I | 6’ 6 ” X 16’ | 1 – E, 1 – I | ST 205/75 R14 C | S T D | S T D | 830 | 2990 |
| 1U78192-2E | 6’ 6 ” X 16’ | 2 – E | ST 205/75 R14 C | S T D | S T D | 860 | 5280 |
| 1U78240-2E | 6’6” X 20’ | 2 – E | ST 205/75 R14 C | S T D | S T D | 1540 | 5460 |
| 1U78264-2E | 6’ 6 ” X 24’ | 2 – E | ST 205/75 R14 C | S T D | S T D | 1760 | 5240 |
Addons
| Model | Description |
| 1U78120RACK-1 | 10 ft single rail |
| 1U78144RACK-1 | 12 ft single rail |
| 1U78168RACK-1 | 14 ft single rail |
| 1U78192RACK-1 | 16 ft single rail |
| 1U78240RACK-1 | 20 ft single rail |
| 1U78264RACK-1 | 22 ft single rail |
| 1U78288RACK-1 | 24 ft single rail |
| 1U78144RACK | 144″ Double rail side rack |
| 1U78168RACK | 168″ Double rail side rack |
| 1U78192RACK | 192″ Double rail side rack |
| 2SPL7866RAMP | Bi-fold 72″X 66″ – fits all 12-16 ft trailers |
JBLundDock.com Pontoon Trailer
Key Information
- Torsion axles for a smoother and stable towing
- Powder paint for superior finish on steel trailers
- Safety chains and 2″ coupler for secure towing
- Fully grounded water-proof lighting and trouble free travel
- EZ lube grease system for ease of maintenance
- Tongue jack standard on all models for ease of use
- Running gear adjustable for proper trailer and vehicle weight to ensure safe travel
- Carpeted bunks on bunk style trailer
- Tire options available. Frames 2’x4′, width 44″, tongue 3’x4′
Main Features
11″ Step
Winch post
- 11″ for ease of walking up to the watercraft
- Non-slip grip tape
- Powder-coated to ensure corrosion resistance
1700 lb Winch
With Strap
- Two-way rachet with neutral position for ease of use
- Comfort grip handle provides easy comfortable cranking
- Heavy-duty construction and corrosion resistant

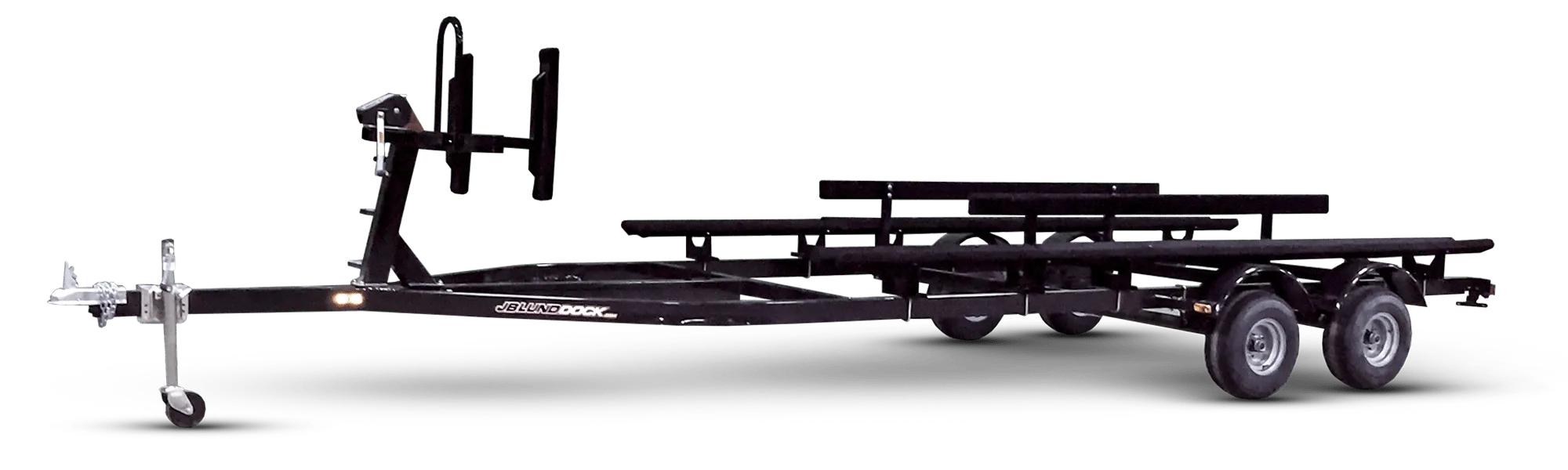

Steel Bunk Models
Features
- 3500 lbTorsion axels for a smoother and more stable towing
- Powder paint for a superior finish on steel trailers
- Safety chains and a 2″ coupler for secure towing
- LED grounded waterproof lighting and trouble-free travel
- EZ lube grease system for ease of maintenance
- Tongue jack standard on all models for ease of use
- Running gear is adjustable for proper trailer and vehicle weight to ensure safe travel
- Carpeted bunks on bunk style trailer
|
Model |
TIRE |
CAPACITY (LBS) |
BOAT LENGTH |
WIDTH BETWEEN FENDERS |
LENGTH |
IDLER/HYDRALIC |
|
1WBS1418-1I |
ST175/80R13 C |
2200 |
14′-18′ |
78″ |
22’6″ |
1 IDLER |
|
1WBS1418-2I |
ST175/80R13 C |
2990 |
14′-18′ |
78″ |
22’6″ |
2 IDLER |
|
1WBS1418-1H1I |
ST175/80R13 C |
2990 |
14′-18′ |
78″ |
22’6″ |
1 IDLER &1-7″ DRUM BRAKES |
|
1WBS1418-2H |
ST175/80R13 C |
3100 |
14′-18′ |
78″ |
22’6″ |
2-10″ DRUM BRAKES |
|
1WBS1921-1I |
ST175/80R13 C |
2200 |
19′-21′ |
78″ |
24’6″ |
1 IDLER |
|
1WBS1921-2I |
ST175/80R13 C |
2990 |
19′-21′ |
78″ |
24’6″ |
2 IDLER |
|
1WBS1921-1H1I |
ST175/80R13 C |
2990 |
19′-21′ |
78″ |
24’6″ |
1-IDLER & 1- 10″ DRUM BRAKE |
|
1WBS1921-2H |
ST175/80R13 C |
3400 |
19′-21′ |
78″ |
24’6″ |
2-10″ DRUM BRAKES |
|
1WBS2224-2I |
ST175/80R13 C |
2990 |
22′-24′ |
78″ |
29′ |
2 IDLER |
|
1WBS2224-1H1I |
ST175/80R13 C |
2990 |
22′-24′ |
78″ |
29′ |
1-IDLER & 1- 10″ DRUM BRAKE |
|
1WBS2224-2H |
ST175/80R13 C |
4700 |
22′-24′ |
78″ |
29′ |
2-10″ DRUM BRAKES |
|
1WBS2527-1H1I |
ST175/80R13 C |
2990 |
25′-27′ |
78″ |
32′ |
2-10″ DRUM BRAKES |
|
1WBS2527-2H |
ST175/80R13 C |
5800 |
25′-27′ |
78″ |
32′ |
2-10″ DRUM BRAKES |

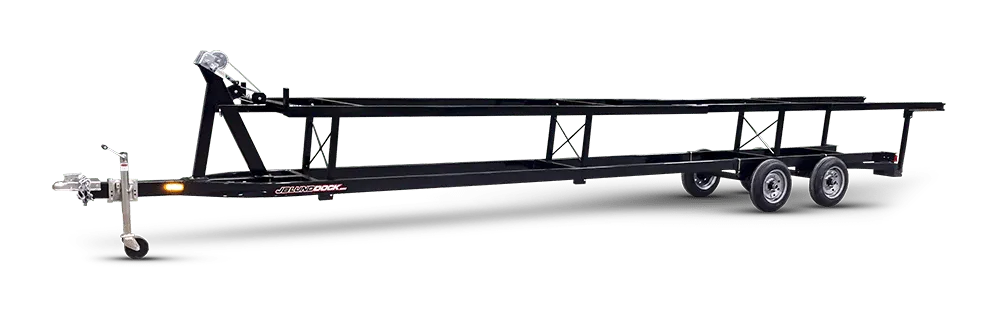

Steel Scissors Models
Features
- 2200 lb Torsion axles for a smoother and more stable towing
- Powder paint for a superior finish on steel trailers
- Safety chains and 2″ coupler for secure towing
- LED grounded waterproof lighting and trouble-free travel
- EZ lube grease system for ease of maintenance
- Tongue jack standard on all models for ease of use
- Running gearis adjustable for proper trailer and vehicle weight to ensure safe travel
|
Model |
TIRE |
CAPACITY (LBS) |
BOAT LENGTH |
WIDTH BETWEEN FENDERS |
LENGTH |
IDLER/HYDRALIC |
|
1PTS20-1I |
ST185/80R12 R |
1990 |
19′-20′ |
NA |
288″ |
1 IDLER |
|
1PTS20-2I |
ST185/80R12 R |
2990 |
19′-20′ |
NA |
288″ |
2 IDLER |
|
1PTS24-2I |
ST185/80R12 R |
2990 |
21′-24′ |
NA |
336″ |
2 IDLER |

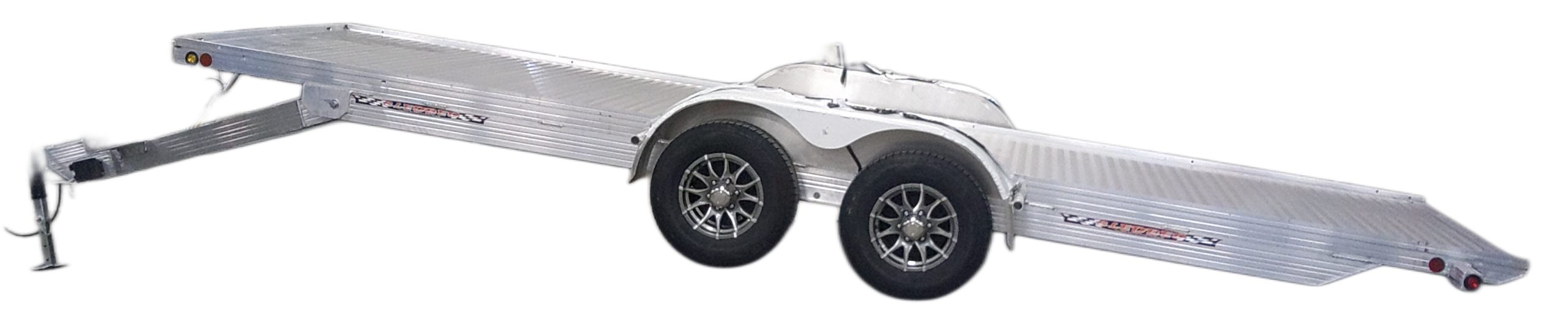

Tilt Bed Trailer
Key Information
- 22′ Tilt Bed Trailer
- Designed for heavy loads with a smooth incline.
- Torsion axle with super lube lubricant system
- 11-year warranty
- Sealed LED lighting
- Extruded Aluminum Decking
- Rust-inhibiting hardware
- 15″ radial tire with aluminum wheel
- heavy-duty lift capacity
Main Features
Five Stringers Support
Extra Stability & Durability
This five-stringer design improves weight distribution, enhances durability, and ensures the trailer can handle heavier tilting loads with ease and reliability.
The added support from the extra stringers also helps prevent bending or warping over time, ensuring the trailer maintains its structural integrity for years of use.
Reinforced hydraulic pump box
On hydraulic models
- Diamond plate structure
- Protects mechanics from the elements
- Built to withstand extreme weather conditions
Smoother Loading
Higher weight capacity
- Provides a gradual incline for loading
- Handles much more weight than ramps.
- Smoother loading experience
- Versatility for loading any type of equipment
Demco Coupler
2 5/16” Coupler
- EZ Latch
- 500 salt spray hours
- 18,000 lbs weight capacity
Powerful Adjustments

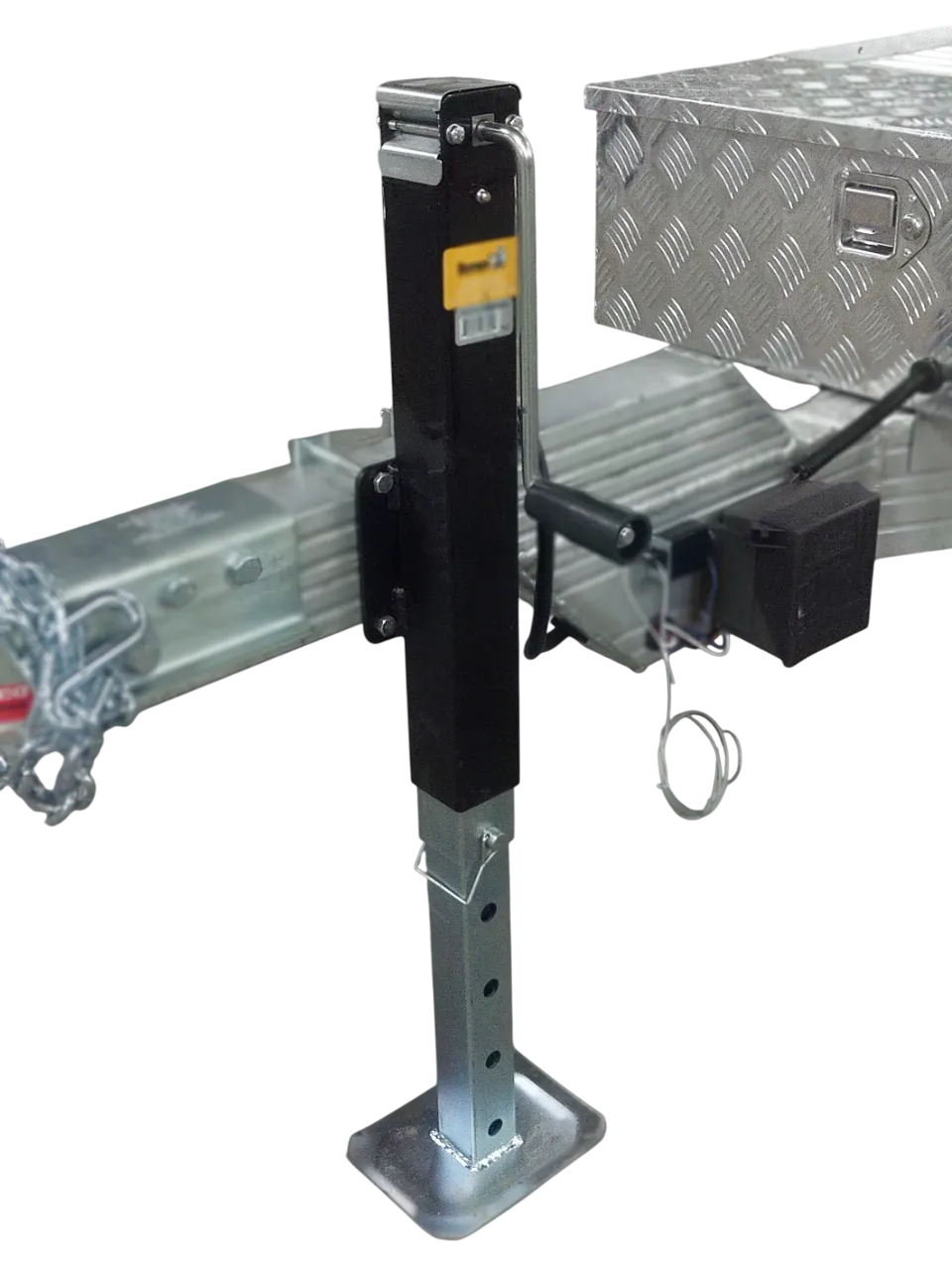

10,000 lb. Jack
Easy tongue adjustment
- Up to 27″ Vertical Adjustment
- 3:4 gear ratio for easy adjustment
- Corrosion-resistant block powder coated
Effortless Tilt

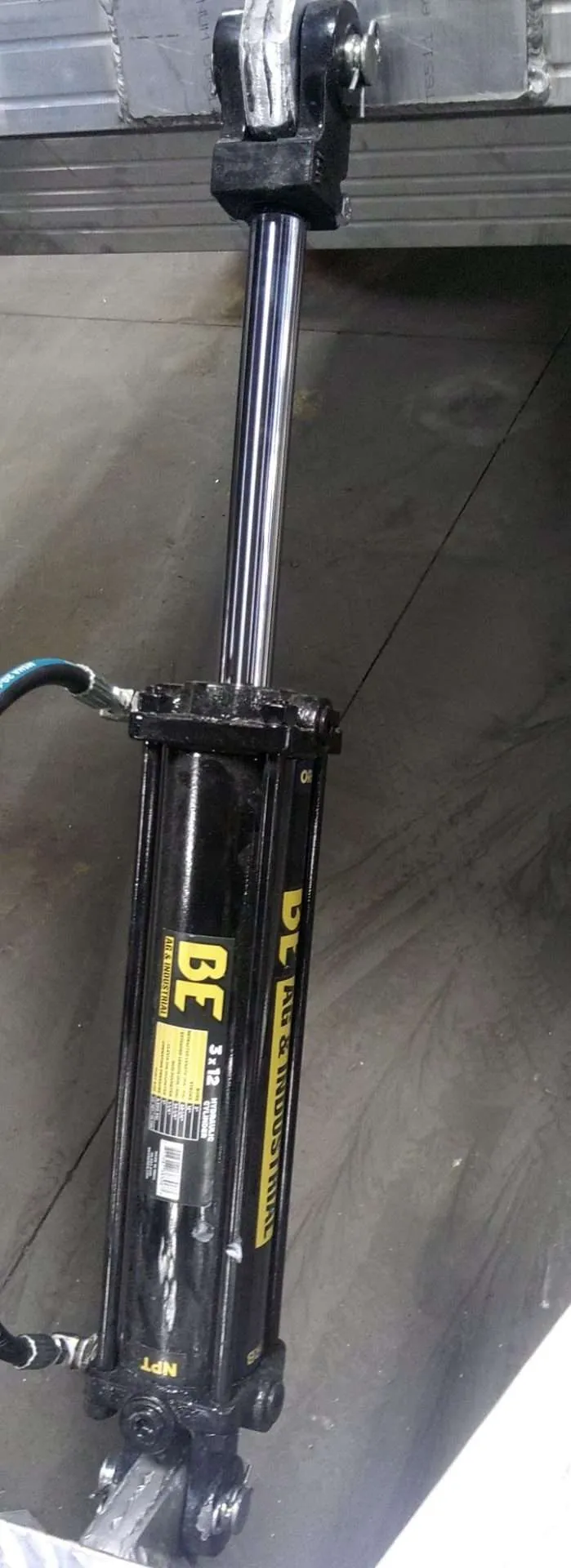

10,000 lb Hydraulic Ram
- 12 volt DC hydraulic pump
- Remote pendent
- Hard chrome plated rod
ABOUT JBLundDock.com
Nestled in Royalton, Minnesota, JBLundDock.com & Lift is a leading manufacturer and supplier of aluminum docks, boat lifts, pontoon lifts, trailers, and accessories. Our products are engineered for durability, streamlined installation, and long-term performance—giving dealers and contractors reliable solutions their customers trust. We specialize in customizable roll-in and sectional dock systems, designed to meet the demands of diverse shoreline conditions while keeping labor and maintenance simple. Serving dealers across the Midwest and beyond, JBLundDock.com combines factory-direct pricing with products built to help your business grow.
At a show near you!
Stop on out, take a look, and leave happy knowing you have a JBLundDock.com coming.
